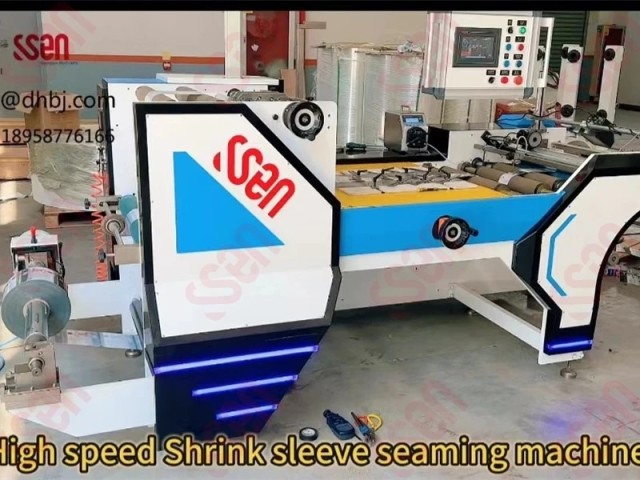

Main Features:
-Stable and heavy-duty frame for high speed operation of 400m/min.
-Adjustable forming plate creates efficient operation.
-Auto solvent feeding control.
-Auto tension control for unwind/rewind unit to maintain the optimun tension.
-Accurate product width.
-Cantilevered rewind/unwind shaft for fast roll changeover.
-PLC with color touch screen control system.
-Rewind oscillation control to produce high quality rolls.
-Name brand EPC web guide device, precision±0.1mm
-Copper tubing with felted wool for gluing, work with glue pump (dispenser) and PLC. The PLC can control the glue capacity with speed changes.
-Static eliminator is adopted before rewinder.
-Whole machine with 4 pcs of servo motors(2 for traction, 1 for rewinder, 1 for oscillation), and 1pc magnetic powder brake for unwinder.
-Linear perforation.
-Traditional aluminum plates forming device for sizes from 30-80mm.
-Auto stop when the rolls finish.
Main Technical Parameter:
|
Model |
DHA-300 |
|
Width of Unwinding |
620mm |
|
Diameter of Unwinding |
Ø600mm |
|
Diameter of Rewinding |
Ø700mm |
|
Max.sealing width |
300mm |
|
Min.sealing width |
20mm |
|
Max.machine speed |
450m/min |
|
Max speed of Machine |
450m/min |
|
Voltage of Whole Machine |
380V-50HZ-3PH |
|
Dimension of Machine (L*W*H) |
3000*1600*1720mm |
|
Machinei weight |
1400kgs |
